Solicitud
The installation cables are used for telephone, signaling and data transmission for permanent surface or concealed installation in dry and damp rooms and for outdoor applications.
Normas
• DIN VDE 0816/0815
Construcción
Conductores
Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 class 1
Aislamiento
Solid polyethylene 2YI2 type as per VDE 0207-2
Elemento de cableado
Star Quads

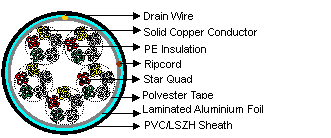

Cable Troncal Asamblea
Group of four wires is stranded into a star quad, the quads are assembled into units and the units form the core
Envasado básico
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing
Pantalla
Laminated aluminium foil is fully enclosing the core with an overlap
Vaina
PVC YM1 type to DIN VDE 0207 part 5. LSZH sheath can be offered as option
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Escurrir Wire(optional)
Tinned drain wire may be applied longitudinally to provide continuity of the screen
Tipo de códigos
| J- |
Installation Cable |
| 2Y |
Polyethylene (PE) |
| H |
Low Smoke & Zero Halogen |
| (St) |
Static Shield of aluminium tape |
| StIII |
Star quad in local cables |
| Bd |
Unit-type stranding |
Propiedades eléctricas
Propiedades mecánicas y térmicas
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter
Código de colores
Quads
The single core is identified by black ring markings:
| Side Circuit 1 |
a-wire |
without marking |
| |
b-wire |
1 mark distance 17mm |
| Side Circuit 2 |
a-wire |
2 marks distance 34mm |
| |
b-wire |
2 marks distance 17mm |
Subunidades
Basic colours for the wire insulation of the 5 star quads of a basic unit:
| Quad 1 Red |
Quad 2 Green |
|
| Quad 3 Grey |
Quad 4 Yellow |
Quad 5 White |
The tracer units are coded with a red helix, all other units by a white binder
Dimensiones y peso
VDE CODE: J-2Y(St)Y…x2x 0.6 StIII Bd
| Código de cable |
Número de pares |
Espesor nominal de aislamiento
mm |
Espesor nominal de la vaina
mm |
Diámetro nominal global
mm |
Peso nominal
kg/km |
| 0.6mm Conductor, 1.1mm Insulated Wire |
TP815J-2Y(St)Y-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
TP815J-2Y(St)Y-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
TP815J-2Y(St)Y-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
TP815J-2Y(St)Y-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
TP815J-2Y(St)Y-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
TP815J-2Y(St)Y-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
TP815J-2Y(St)Y-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
TP815J-2Y(St)Y-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
TP815J-2Y(St)Y-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
TP815J-2Y(St)Y-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
TP815J-2Y(St)Y-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
VDE CODE: J-2Y(St)H…x2x 0.6 StIII Bd
| Código de cable |
Número de pares |
Espesor nominal de aislamiento
mm |
Espesor nominal de la vaina
mm |
Diámetro nominal global
mm |
Peso nominal
kg/km |
| 0.6mm Conductor, 1.1mm Insulated Wire |
TP815J-2Y(St)H-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
TP815J-2Y(St)H-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
TP815J-2Y(St)H-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
TP815J-2Y(St)H-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
TP815J-2Y(St)H-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
TP815J-2Y(St)H-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
TP815J-2Y(St)H-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
TP815J-2Y(St)H-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
TP815J-2Y(St)H-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
TP815J-2Y(St)H-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
TP815J-2Y(St)H-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
